  • Options Available

423SDC4A

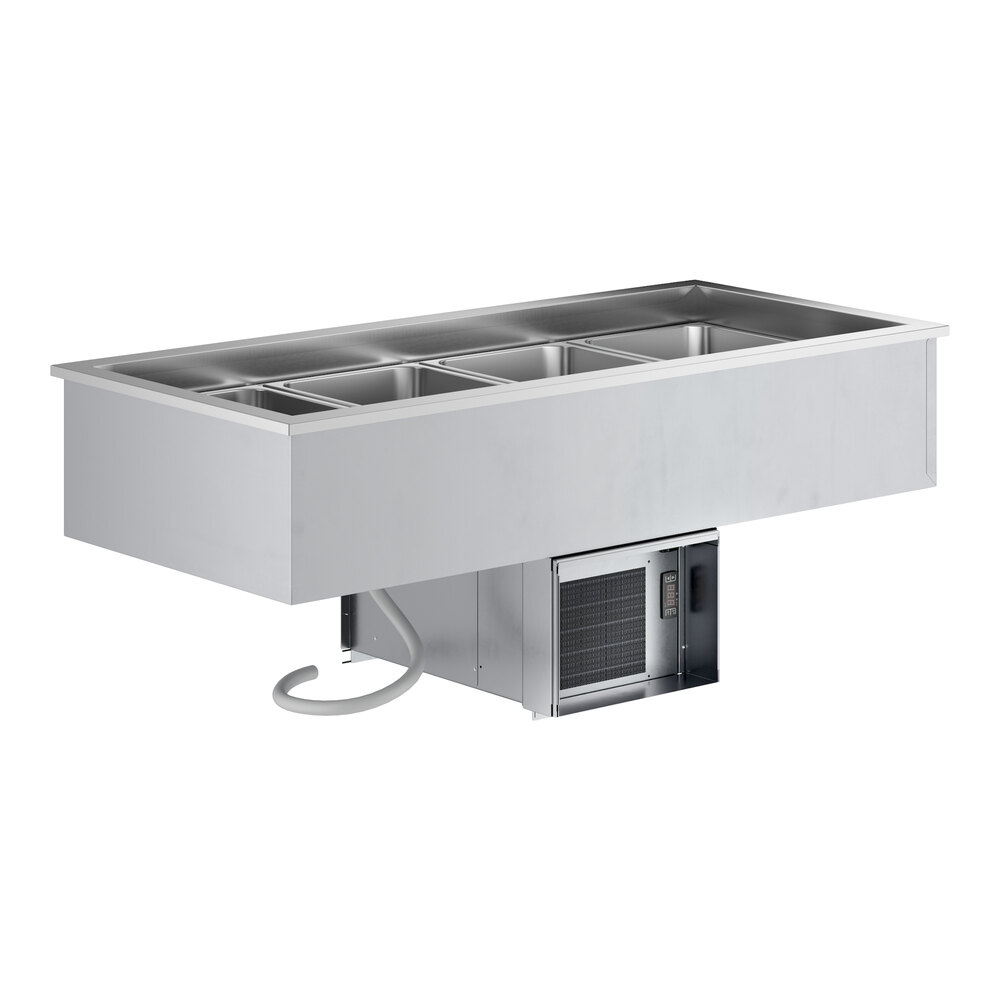

SDC-4A Four Pan Drop-In Refrigerated Cold Food Well - 120V

Features

  • Designed for holding pre-chilled products at a safe serving temperature
  • Holds four full size 6" deep food pans
  • Durable stainless steel top and body
  • Easy-to-use digital controller
  • High-performance R-290 refrigerant; 120V, 1/3 hp

Certifications

  • 5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Other Available Sizes

Specifications

  • Width 56 1/4 Inches
  • Depth 25 7/8 Inches
  • Height 22 1/16 Inches
  • Power Cord Length 6 Feet
  • Cutout Width 55 1/4 Inches
  • Cutout Depth 24 7/8 Inches
  • Amps 2 2/5 Amps
  • Hertz 60 Hertz
  • Phase 1 Phase
  • Voltage 120 Volts

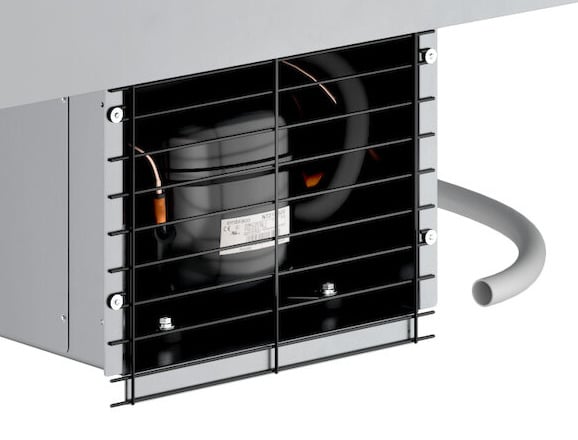

  • Compressor Location Bottom Mounted
  • Control Type Digital
  • Features NSF Listed
  • Features With Drain
  • Gauge 18 Gauge
  • Gauge 20 Gauge
  • Horsepower 333/1000 HP
  • Installation Type Drop In
  • Material Stainless Steel
  • Number of Wells 4 Wells
  • Pan Mounting Recessed
  • Plug Type NEMA 5-15P
  • Power Type Electric
  • Refrigerant Capacity 3 1/2 oz.
  • Refrigerant Type R-290
  • Refrigeration Type Cold Wall
  • Size Full Size
  • Stainless Steel Type Type 304
  • Stainless Steel Type Type 430
  • Style Top Mount
  • Type Refrigerated Food Wells

Frequently Asked Questions

View All FAQs

Any cutout dimensions provided are intended to give an idea of the space required and may vary within normal manufacturing tolerances. We highly recommend that you receive the unit, measure it to confirm exact dimensions needed, and then proceed with making the cutout(s).
